Description

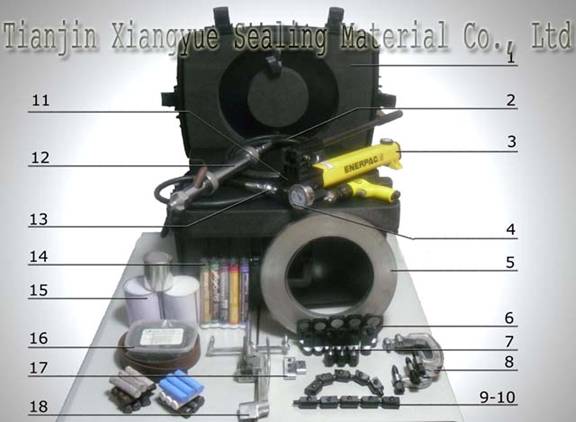

Injection Tools Package
1 Tool Case
2 High-Pressure Hose
3 Manual Hydraulic Oil Pump
4 Manometer (0 ~ 600 bar)
5 Steel Belt
6 Screw Filling Joint
7 Injection Valve
8 G-Clamp (L M S)
9 Reversing Joint 90o
10 Reversing Joint 120o
11 Gauge Stand Joint (three way type)
12 TXY-Injection Gun
13 Quick Coupling (closed type M&F)
14 PSI Epoxy Putty Quick Repair Series
15 Heat-Proof Quick Steel Paste
16 TXY Series Sealants
17 Steel Belt Clip
18 Belt Tighter (manual)

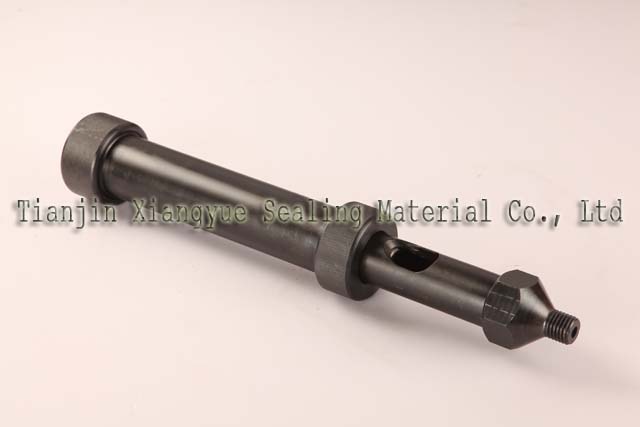

Injection Gun
1, TXY-II mechanical reset injection gun
2, Hydraulic rest injection gun
Oil Pump

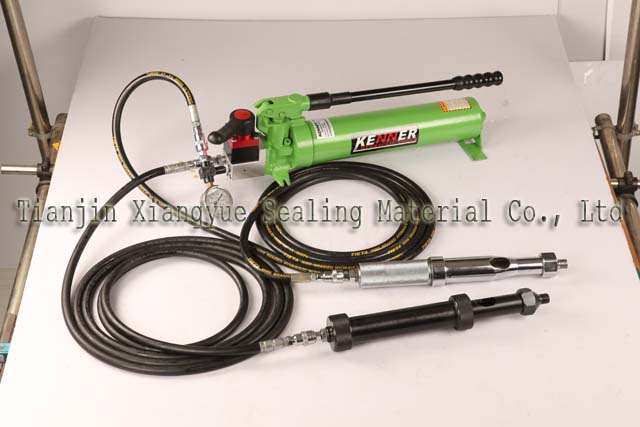

1, Manual Hydraulic Oil Pump
TXY manual pump
|
|
TXY manual pump | ||
|
Pressure |
Max Pressure |
MPa |
63 |
|
Min Pressure |
1 | ||
|
High Pressure |
ml/time |
2.3 | |
|
Low Pressure |
12.5 | ||
|
Oil Storage |
ml |
700 | |
|
Weight |
kg |
9 | |
|
Size (L × W × H) |
mm |
630 × 175 × 176 | |

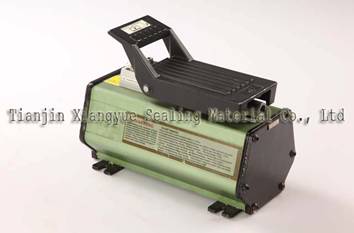

2, Pneumatic Pump
P-2810
|
Model |
Max. Pressure |
Capability |
Air pressure |
Oil Storage |
Weight
| |
|
P-2810 |
MPa |
ml /min |
ml /min |
MPa |
ml |
ml |
|
63
|
Low pressure |
High pressure |
0.5 ~ 0.7 |
1650 |
5.5 | |
|
1324 |
524 | |||||
3, Double-acting Pump
P-84
|
|
TXY manual pump | ||
|
Pressure |
Max Pressure |
MPa |
70 |
|
Min Pressure |
2.5 | ||
|
Capability |
High Pressure |
ml/time |
16.22 |
|
Low Pressure |
2.46 | ||
|
Oil Storage |
ml |
2200 | |
|
Weight |
kg |
| |
|
Size (L × W × H) |
mm |
630 × 175 × 176 | |

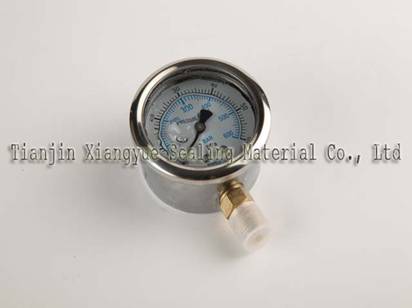

Manometer

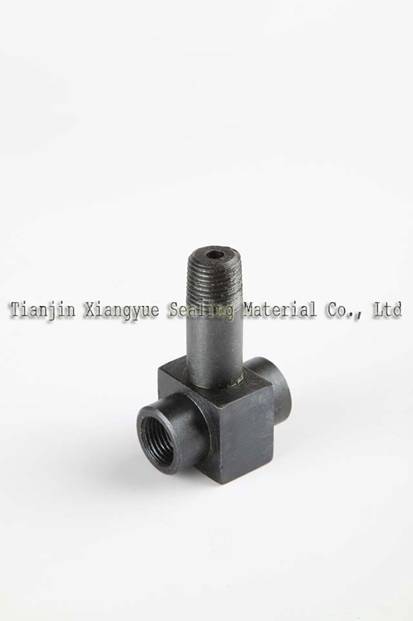

Manometer Joint

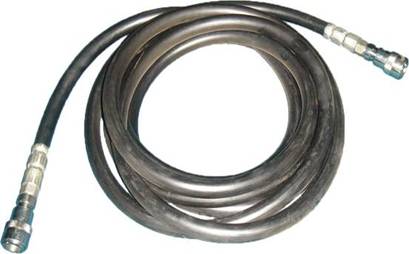

High Pressure Hose
Reversing Joint
90° 120°

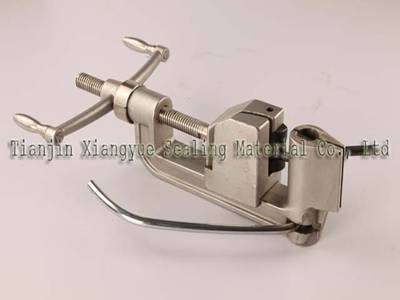

Banding Machine

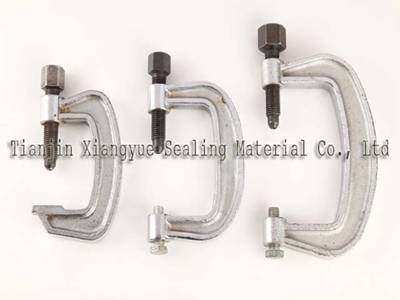

G-clamp

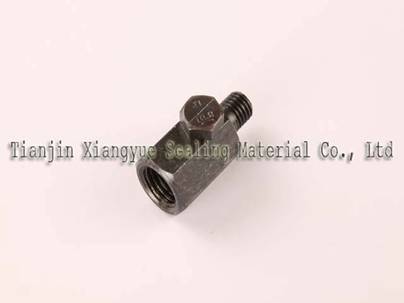

Injection Valve
Notes：Applied with injection gun and clamps, injection valves are categorized as M8/M20、M10/M20、 M12/M20 and M14/20.

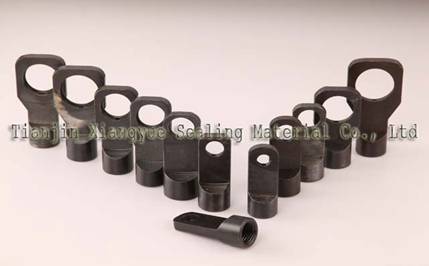

Screw Joint
Notes：Applied with M12、M14、M16、M18、M20、M22、M24、M27、M30、M32、M34 and M36 screw.
Features
|
